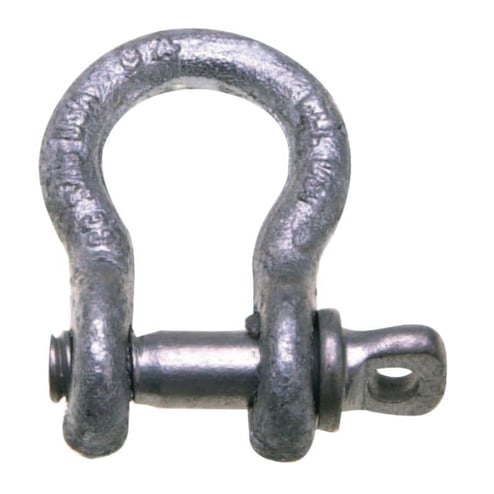

419 Series Anchor Shackle, 1-1/4 in Opening, 3/4 in Bail Size, 4-3/4 t, Screw Pin Shackle


Product Description

Constructed of drop-forged carbon steel. Galvanized finish. Working load limit permanently shown on every shackle.

Specifications

Bail Size 3/4 in
Finish Galvanized Zinc
Inner Length [Nom] 2-13/16 in
Inner Width [Nom] 1-13/16 in
Locking Type Threaded Pin
Material Drop-Forged Carbon Steel
Opening Size [Nom] 1-1/4 in
Pin Size [Nom] 7/8 in
Type Screw Pin Shackle
Working Load Limit 4-3/4 t
