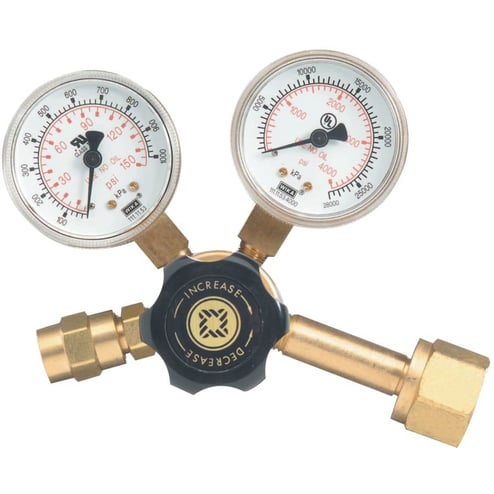

REB Series Light Duty Single Stage Regulator, Oxygen, CGA 540, 3,000 psi inlet


Product Description

Neoprene diaphragm is sensitive yet durable to maintain consistent delivery pressure. Dual inlet filtering system extends regulator life. Dual scale gauges are easy to read. KEL-F® seat assembly. For applications requiring a portable, lightweight, compact regulator such as in plumbing, and light-duty cutting and welding.

Specifications

Body Material Machined Brass
Diaphragm Material Neoprene
Flow Cap. [Max] 1000 SCFH
Gas Type Oxygen
Gauge Size 2 in
Height [Nom] 4-1/4 in
Inlet Connection CGA 540
Inlet Pressure [Max] 3000 psi
Length [Nom] 6 in
Outlet Connection 9/16 in - 18 RH(M)
Outlet Pressure [Max] 100 psi
Outlet Pressure [Min] 0 psi
Width [Nom] 3-3/4 in
Wt. 29 oz
Prop65 WARNING: This product can expose you to Lead, a chemical known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
