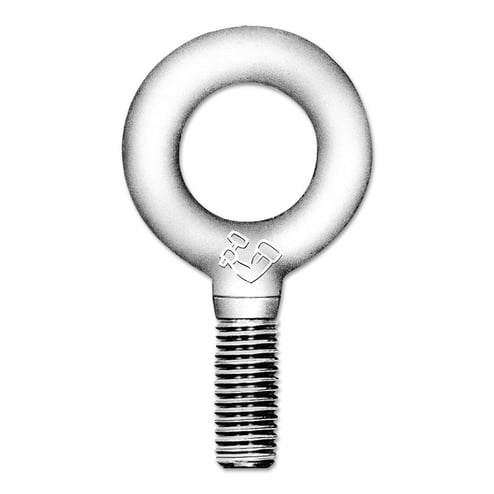

Shoulder Pattern Eye Bolts, 3/8 in - 16 UNC


Product Description

Drop forged are quenched and tempered for optimum strength. Furnished with Unified National Coarse (U.N.C.) threads. Special threads and lengths.

Specifications

Eye Inner Diam [Nom] 1 in
Eye Outer Size 1 21/32 in
Load Cap. [Nom] 1400 lb
Load [Max] @ Angle 1,400 lb @ 0 °; 650 lb @ 30 °; 350 lb @ 45 °; 325 lb @ 60 °; 275 lb @ 90 °
Material Forged Carbon Steel
Overall Length [Nom] 1 1/4 in
Quantity 1 per box
Thread - TPI or Pitch 3/8 in - 16 UNC
Type Eye Bolt-Shouldered
Wt. 0.13 lb
