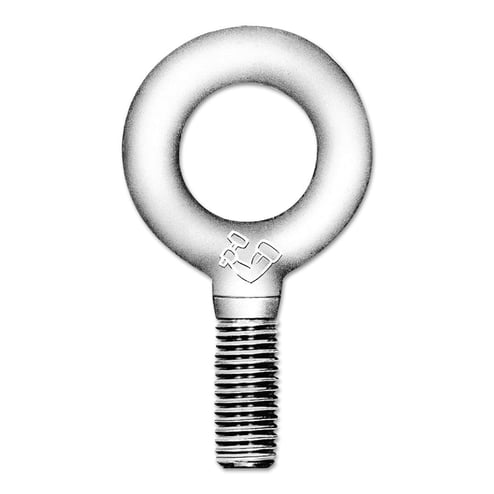

Shoulder Pattern Eye Bolts, 5/16 in - 18 UNC


Product Description

Drop forged are quenched and tempered for optimum strength. Furnished with Unified National Coarse (U.N.C.) threads. Special threads and lengths.

Specifications

Eye Inner Diam [Nom] 7/8 in
Eye Outer Size 1 7/16 in
Load Cap. [Nom] 800 lb
Load [Max] @ Angle 800 lb @ 0 °; 225 lb @ 30 °
Material Forged Carbon Steel
Overall Length [Nom] 1 1/8 in
Quantity 1 per box
Thread - TPI or Pitch 5/16 in - 18 UNC
Type Eye Bolt-Shouldered
Wt. 0.08 lb
