Chicago-Latrobe 118° General Purpose Screw Machine Drill, 9/64 in Tip Size, 0.9375 in Flute Length, 1.9375 in OAL, Bright Finish

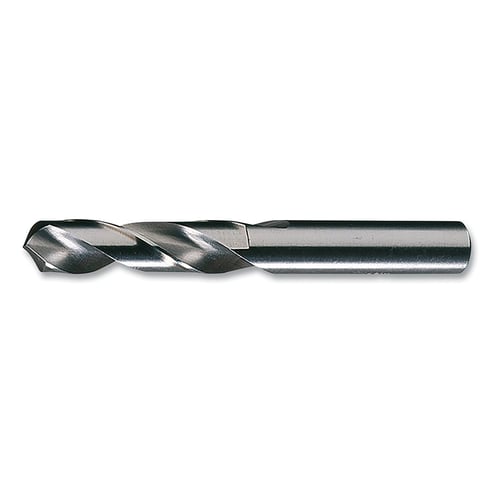

Selected 890-48509.jpg

Product Description

General-purpose geometry for drilling in a wide range of operating conditions and materials. Manufactured from premium high-speed steel. Shorter flute and overall length provide superior rigidity to minimize deflection when using heavy fee rates. Extra rigidity is ideal for portable drilling. Bright finish standard from stock up to 0.5000 in, black oxide standard from stock over 0.5000 in, titanium-nitride (TiN) coated available from stock in selected sizes.

Specifications

Dia. [Nom]
9/64 in
Finish
Bright
Flute Length
0.9375 in
Material
HSS
No. of Flutes
2
Overall Length [Nom]
1.9375 in
Packing Type
Envelope
Point Angle
118°
Point Shape
Radial
Shank Type
Straight
Tip Size Symbol [Nom]
9/64 in
Type
Screw Machine Drill
Prop65
WARNING: This product can expose you to LEAD, NICKEL, COBALT, a chemical known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
