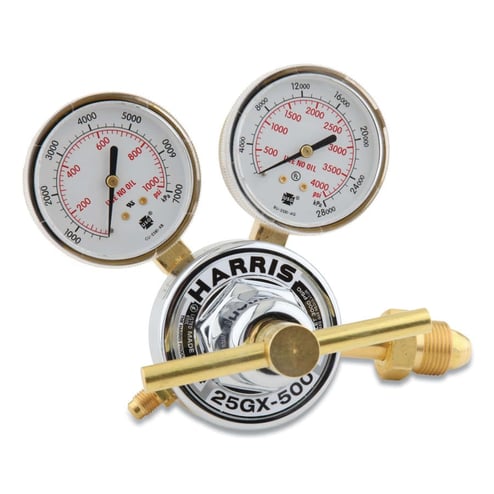

Harris Product Group 25GX Single-Stage Medium/Heavy-Duty HVAC Purging Regulator, 580, Argon, Helium, Nitrogen

Selected 348-3000606.jpg

Product Description

High-end features for economical price. Designed for HVAC and other nitrogen pressure testing and blanketing applications. Easy-to-operate brass T screw. Brass body and chrome-plated zinc bonnet for longer service life. Neoprene diaphragm for better pressure control. One-piece encapsulated seat design with internal filter to protect the PTFE Teflon® seat from particulate contamination. 2.5 inch steel dual scale easy-to-read gauges.

Specifications

Body Material
Brass
Capacities
Medium to Heavy
Depth [Nom]
4.99 in
Diaphragm Material
Neoprene
Gas Type
Argon; Helium; Nitrogen
Gauge Size
2-1/2 in (steel)
Inlet Connection
CGA 580
Inlet Pressure [Max]
3000
Length [Nom]
4.99 in
Series
25GX
Type
Regulator
Width [Nom]
7.20 in
Wt.
2.9 lb
Prop65
WARNING: This product can expose you to Lead and lead compounds, 7439-92-1, a chemical known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
