REELCRAFT Heavy Duty Spring Retractable Hose Reels, 3/8 in x 70 ft

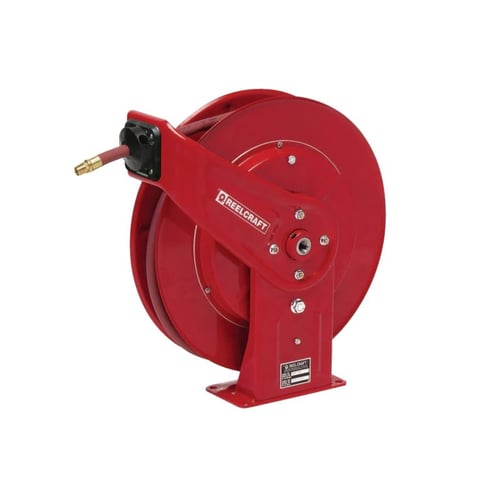

Selected 523-7670OLP.jpg

Product Description

The steel guide arm and base are stamped with ribs and gussets and robotically welded to insure maximum strength and lightest possible weight. The full flow swivel combines the highest grade seal design and materials with bearing areas to insure maximum service life. Declutching arbor virtually eliminates possibility of spring damage due to reverse winding. Individually powder coated components offer the maximum protection from premature corrosion.

Specifications

Height [Nom]
20-1/4 in
Hose I.D. [Nom]
3/8 in
Hose Length
70 ft
Hose O.D. [Nom]
0.6 in
Inlet Size
1/2 in NPT(F)
Length [Nom]
19 in
Material
Steel
Operating Pressure [Nom]
300 psi
Outlet Size
1/4 in NPT(M)
Type
Low Pressure Air/Water Reels
Width [Nom]
6-1/8 in
Prop65
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
