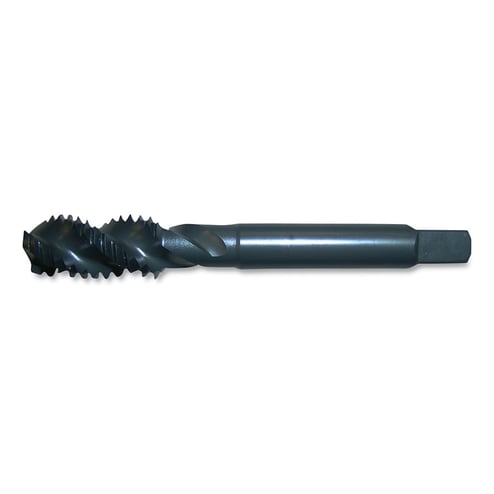

GREENFIELD THREADING Steam Oxide Plug Spiral Flute Tap, 3/8 in -16 Tool Size, UNC

Selected 890-282559.jpg

Product Description

UN coarse UNC taps have fewer threads per inch than UN fine UNF taps. Compared to UNF taps, UNC taps perform better in threading applications on brittle materials and are less likely to cross thread. Coarse threads can withstand more physical abuse than fine threads. Black-oxide finish on these taps retains lubricants to improve the taps' wear resistance and chip flow. Black-oxide taps should only be used on ferrous metals.

Specifications

Applicable Materials
Stainless Steel; Steel
Cutting Direction
Right
End Shape
Square
Length [Nom]
2.9375 in
Material
High Speed Steel
Measuring System
Imperial
No. of Flutes
3
Outside Diam [Nom]
3/8 in
Packing Type
Snap Pack
Quantity
1 EA / EA
Shank Size Symbol
Square
Style
SFHD
Tap Size
3/8/2016 12:00:00 AM
Tap Type
Spiral Flute
Thread - TPI or Pitch
16
Thread Pitch [Nom]
16
Thread Size [Nom]
3/8 in
Type
UNC
Prop65
WARNING: This product can expose you to LEAD, NICKEL, COBALT, a chemical known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
